Photographed: The Anatomy of the Kinboofi MK4 Earphone

Jürgen Kraus (Calgary, Canada)

The handmade Kinboofi MK4 earphone features four balanced armature drivers, two by Knowles (bass, midrange) and two by Bellsing (treble). Here some pictures of its interior. The review unit was kindly provided by Wooeasy Earphones Store. You find our full review of the Kinboofi MK4 HERE.

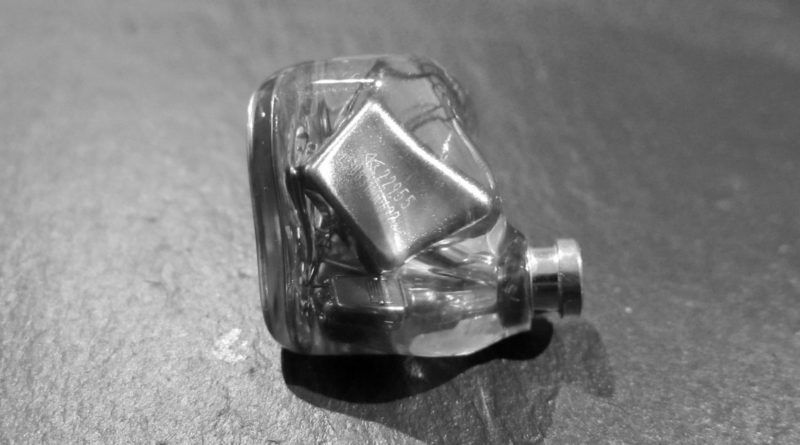

Kinboofi MK4 earpieces.
The Kinboofi MK4’s two earpieces.


Kinboofi MK4 three balanced armature drivers.
Three balanced armature (BA) drivers: a Knowles 29689 for the midrange, and two Bellsing 30095 for the treble.


Kinboofi MK4 three balanced armature drivers. zoomed up.
Zoom-up of the previous.


Kinboofi MK4 two Bellsing balanced armature drivers.
The twinned Bellsing 30095 BA “tweeters”.


Kinboofi MK4 one Knowls balanced armature driver for the bass.
A Knowles 22955 BA for the low end.



Kinboofi MK4 crossover
Kinboofi MK4 crossover.



Kinboofi MK4 MMCX connector.
Wiring around the MMCX connector.
Frequency response of Kinboofi MK4
Frequency response of the MK4. All our graphs HERE.
